In this tab the user can set the contact point as well as other important points of the indentation process, mechanical properties of the tip and sample, indenter noise and define the area function. After successfully loading a file, the software creates the force-distance diagram from the data, and attempts to automatically detect the loading, hold and unloading parts of the data.
The window consists of the following:
Info displays the maximum depth and force during the indentation determined as in section 4.2.

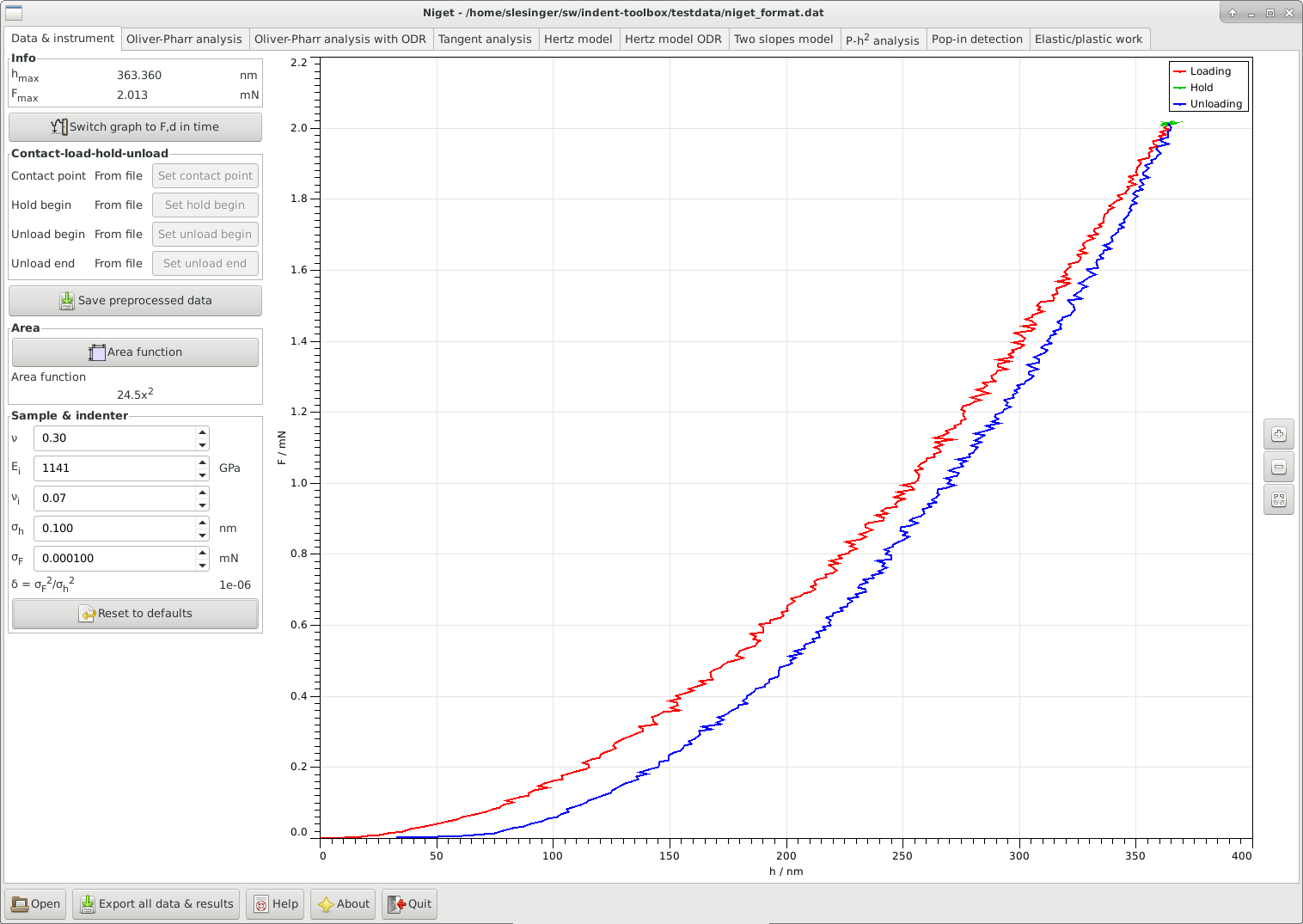

Switch graph to … switches between two display modes: force as a function of depth (F-d) and force and depth as functions of the (pseudo)time (F,d-t). The index of the data point is used instead of the real time, which is not read from the file. In the second case, both curves are displayed dimensionless, and scaled just to provide good visual resolution.

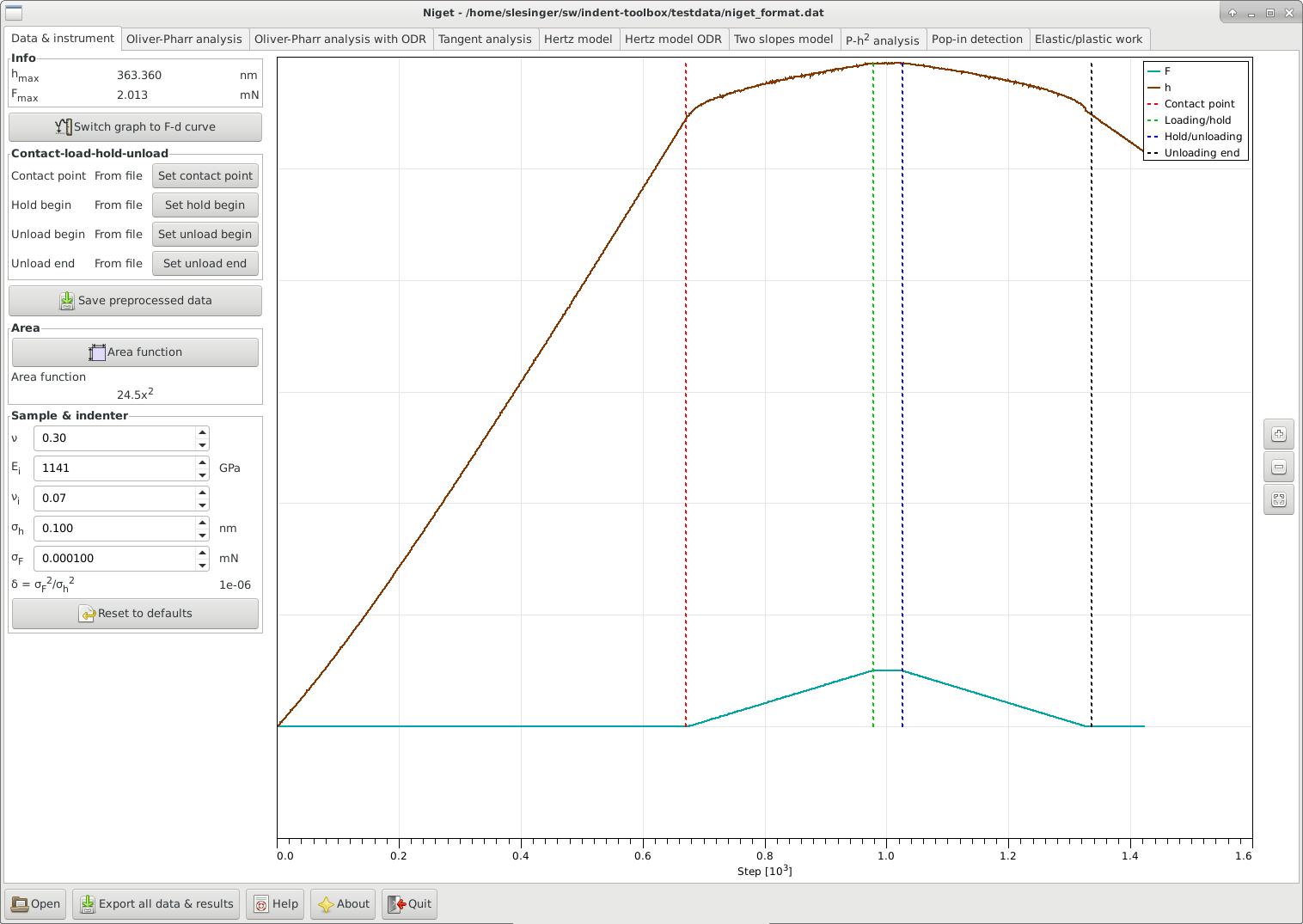

Contact-load-hold-unload Allows to manually split the data into the loading, hold and unloading parts:
Contact point: determines the beginning of the loading curve. The depth and force at this point and are subtracted from the loading-unloading curves.
Unload end: define the end of the unloading part. By default, the data are truncated at zero depth.
Whether the point was set automatically or manually is shown. Note, that if the division of the data into the different parts is changed, all analysis results are deleted!
Save preprocessed data saves the data including the selected split of the data in the native format Niget.
Area function button: opens a separate dialog for the definition of the area function, see 4.3
displays the area function used currently.
Sample & indenter The parameters here are Poisson’s value of the sample, Young’s modulus of the indenter, Poisson’s value of the indenter and the noise of the displacement and load sensors. The default values are 0.3, 1141 GPa, and 0.07. The first is a reasonable estimate of the often unknown Poisson’s value for many materials, the other two values are the literature values for diamond which is a common indenter tip material. The noise of the sensors is used for the fitting procedures and for the uncertainty analysis. These values are saved in settings and can be reset to their default values.
Graph displays the indentation curve. Stepwise zooming/unzooming can be performed by selecting a range with the mouse and pressing the Zoom/ Unzoom buttons. The graph is restored to its original size by the Restore button. The zooming procedure is independent in the two regimes (F-d vs. F,d-t).
The maximum force is the maximum force value found in the unloading data. The maximum depth is the corresponding depth, NOT the maximum depth value!

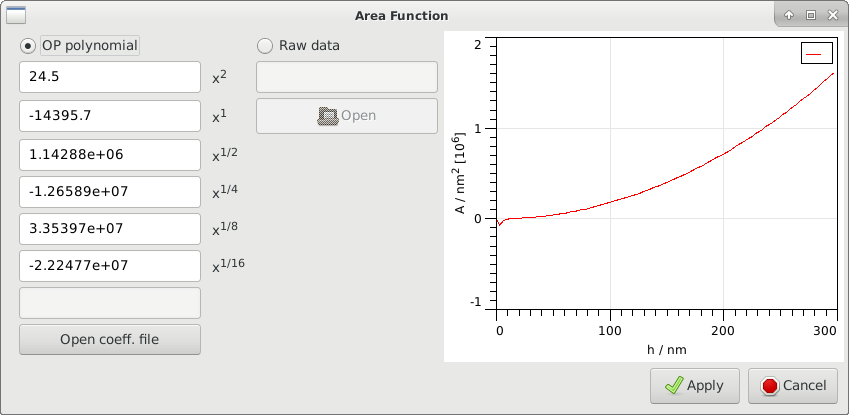

The area function can be given either in form of a polynomial of the form
or a raw data file can be loaded, which will be (linearly) interpolated in subsequent calculations. The format of the area data file MUST be two columns: first column depth in nm, second column area in nm.
The area function is shown for user information. A warning is issued if a raw data file is used and any of the methods extrapolates the area. The coefficients of a polynomial area function are saved in the settings file.
For specific formats, the coefficients can also be loaded directly from a file.
Currently, this should work for an
.ara file (as exported from a Hysitron instrument) or for an
.ind file (as exported from a UNHT Anton Paar instrument).
This is under testing and may not work correctly for other versions.
